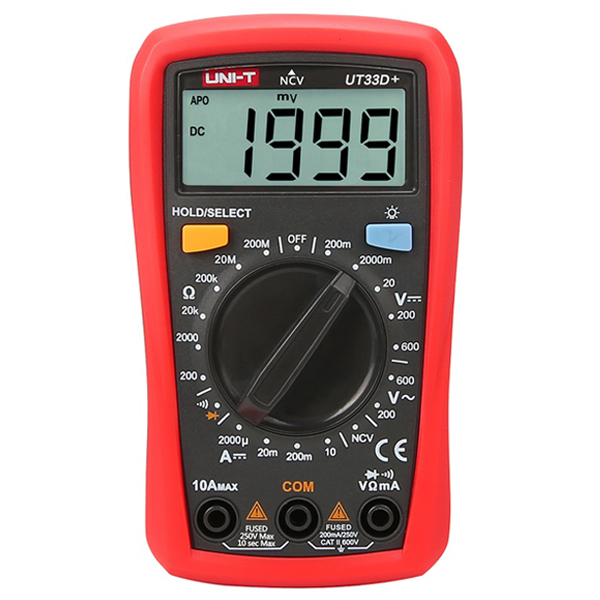

UT33D+ Palm Size Digital Multimeter
UT33D+ Palm Size Digital Multimeter The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 2-meter drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment.
Features of UT33D+ Palm Size Digital Multimeter
-
Non-contact voltage (NCV) test (UT33D+)
-
Clear LCD display
-
Comfortable protective cover, with test lead hanging groove
-
2 meters drop test, precision protection
-
Loud buzzer sound; Ergonomic design
Specifications | Range | UT33D+ |
DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%+2) |
AC voltage (V) | 200V/600V | ±(1.2%+3) |
DC current (A) | 2000μA/20mA/200mA/10A | ±(1%+2) |
Resistance (Ω) | 200Ω/2kΩ/20kΩ | ±(0.8%+2) |
Features | ||
Display count | 2000 | |
Auto power off/Auto backlight off | √ | |
Diode test/Continuity buzzer | √ | |
2m drop test/ Test probe holder | √ | |
Range selection | Manual | |
NCV | √ | |
General Characteristics | ||
Power | 1.5V battery (R03) x 2 | |
Display | 66mm x 51mm | |
Product net weight | Red and grey | |
Product Color | 206g (batteries included) | |
Product size | 134mm x 77mm x 47mm | |
Standard accessories | Batteries, test leads, | |
Standard individual packing | Gift box, English manual |
